Frame Component

Overview

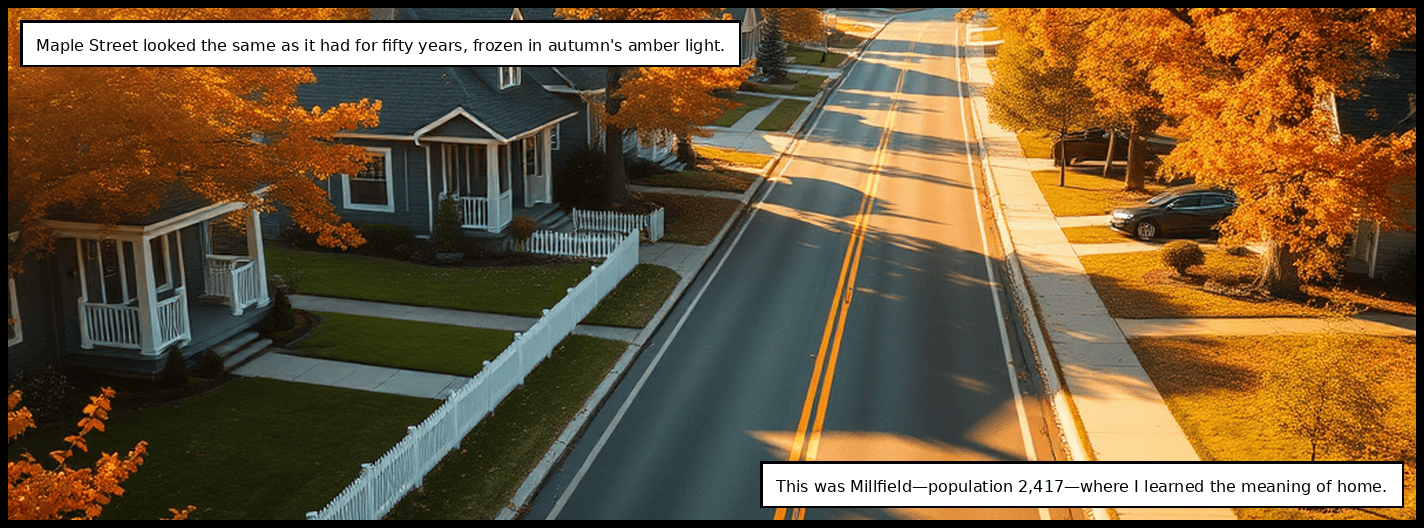

A Frame node processes images into comic-style panels with borders, padding, and captions.

Parameters

Required

• image (IMAGE): Input image tensor (NHWC format)
• frame_width (INT): Width in pixels (64-2048, default: 512)
• frame_height (INT): Height in pixels (64-2048, default: 512)
• border_width (INT): Border thickness (0-50px, default: 3)
• border_style: Choose from "thin", "medium", "thick", or "custom"
• padding (INT): Space between border and image (0-100px, default: 10)
• border_color: Border color (RGB)

Optional

• background: Background color
• caption: Text caption (supports multiline)
• caption_style: Caption styling options
• previous_frame: Link to previous frame for flow control

Usage Example

frame = FrameNode().process_frame(
    image=input_image,
    frame_width=512,
    frame_height=512,
    border_width=3,
    border_style="medium",
    padding=10,
    border_color={"red": 0, "green": 0, "blue": 0}
)

Technical Details

Output

• frame: Processed image with metadata (dimensions, styles, caption)
• preview: Preview image (max 512px width)

Image Processing

• Maintains aspect ratio
• High-quality scaling (LANCZOS)
• Efficient memory handling
• Normalized color values [0-1]

Border Styles

• thin: 2px
• medium: 4px
• thick: 6px
• custom: Uses specified width

Best Practices

1. Use high-quality source images
2. Keep consistent border styles across related frames
3. Use padding for visual breathing room
4. Keep captions concise and readable
